Low Carbon Wedge Wire Arc Screen Filter for Waste Water Treatment

Low Carbon Wedge Wire Arc Screen Filter for Waste Water Treatment

low carbon wedge wire filter

arc screen filter wastewater

parabolic wedge wire screen

Место происхождения:

Аньпин, Хэншуй, Китай

Фирменное наименование:

Hengyuan

Сертификация:

ISO, CIQ, CE, SGS

Номер модели:

HY0727002

Свяжитесь мы

Спросите цитату
Детали продукта
name:
Фильтр для экрана с аркой из проволоки клина
Материал:
низкоуглеродистый
Размер:
до 4000*4000 мм
Слот:
0.25-100 мм
Провод Wege:
2*3.5, 3*4.6, 3*5 мм
Поддерживающий стержень:
3*4,6 мм В проволока
Характер продукции
Low Carbon Waste Water Treatment Wedge Wire Arc Screen Filter
Product Specifications
Attribute Value
Name Wedge Wire Arc Screen Filter
Material Low carbon steel
Size Up to 4000 × 4000mm (customizable)
Slot 0.25-100mm (250 micron to 100mm)
Wedge Wire 2×3.5, 3×4.6, 3×5mm (multiple options available)
Support Rod Various sizes including 2×3, 3×4.6, 3×5, 3×6, 2×10, 3×10mm
Angle 90°, 120°, 140°, 150°, 160° (customizable)
Arc Height 10mm, 15mm, 20mm, 50mm or customized
Frame No frame, "L" type frame, ordinary frame, 5×10mm frame (customizable)
Product Description
The Low Carbon Wedge Wire Arc Screen Filter is a high-performance filtration solution designed for industrial wastewater treatment applications. This durable screen features a parabolic design with customizable slot sizes ranging from 250 micron to 100mm, making it suitable for various filtration requirements.
Key Features
  • Constructed from low carbon steel for durability and corrosion resistance
  • Customizable dimensions up to 4000mm × 4000mm
  • Available in multiple wedge wire profiles (2×3.5, 3×4.6, 3×5mm)
  • Adjustable slot sizes from 0.25mm to 100mm
  • Multiple angle options (90° to 160°)
  • Various frame configurations available
  • Made-to-order designs based on customer specifications

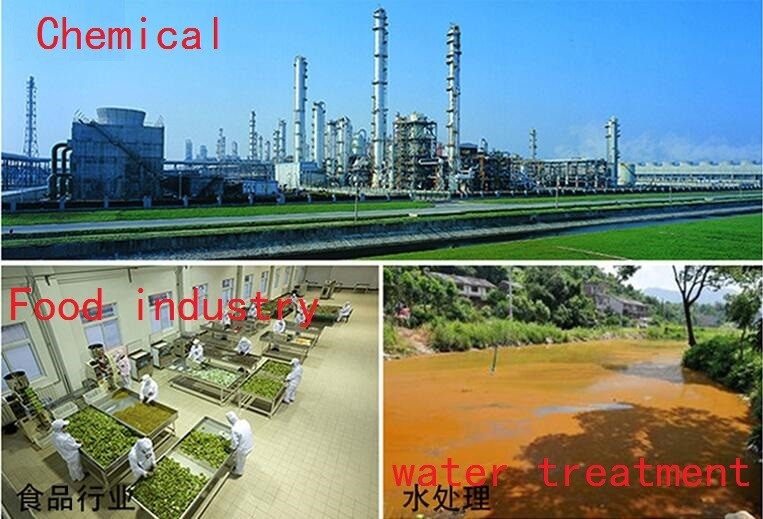

Applications
The Wedge Wire Arc Screen is ideal for use in:
  • Industrial water treatment equipment
  • Mineral processing systems
  • Coal-cleaning plants
  • Environmental protection and filtration systems
  • Wastewater treatment facilities

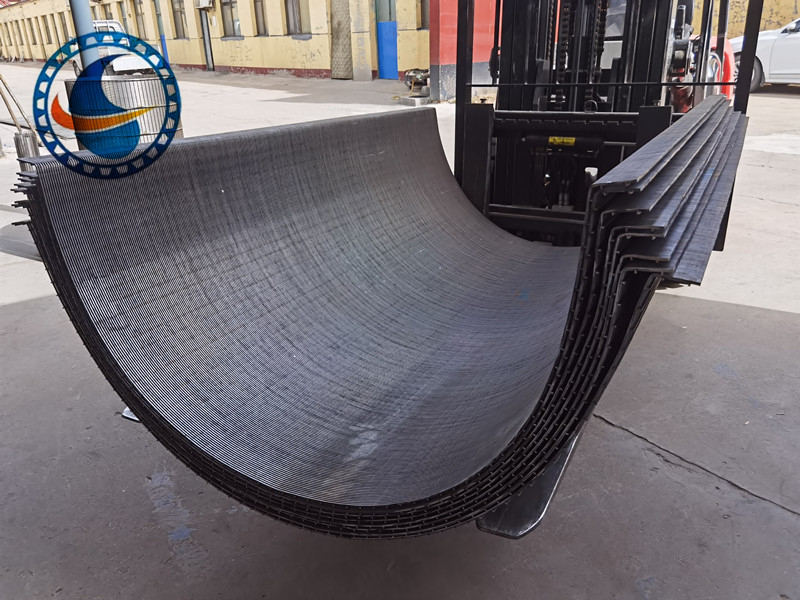

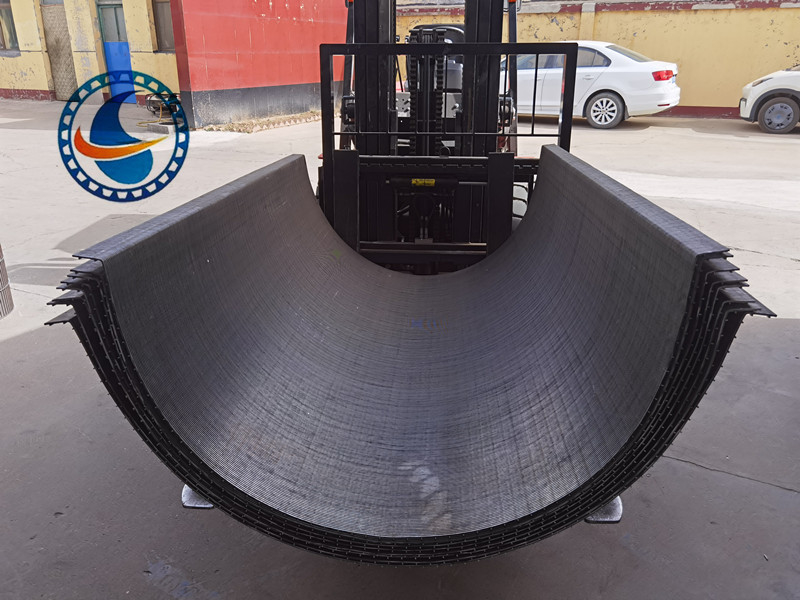

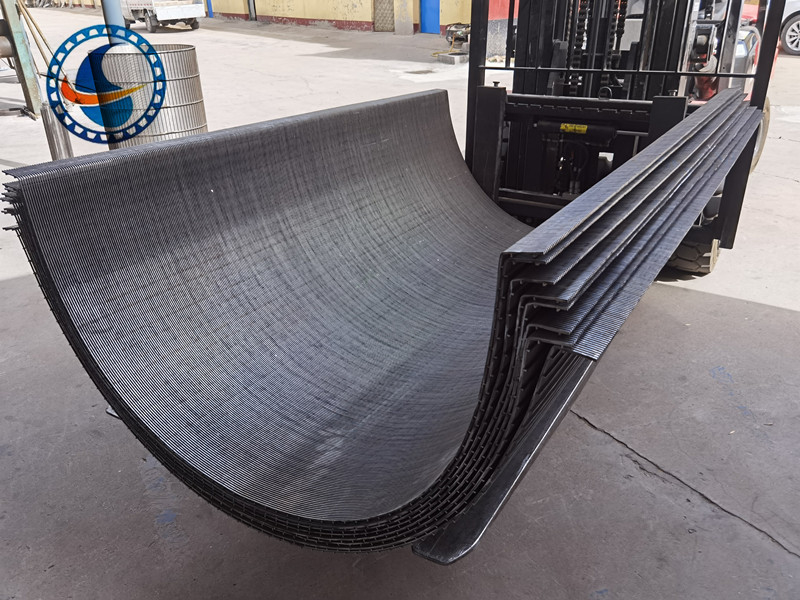

Low Carbon Wedge Wire Arc Screen Filter for Waste Water Treatment 0
Customization Options
We offer complete customization of our Wedge Wire Arc Screens to meet your specific requirements. Our engineering team can manufacture screens according to your technical drawings, with options for:
  • Custom dimensions and shapes
  • Special slot sizes and patterns
  • Various wedge wire profiles
  • Multiple support rod configurations
  • Different frame types and materials
